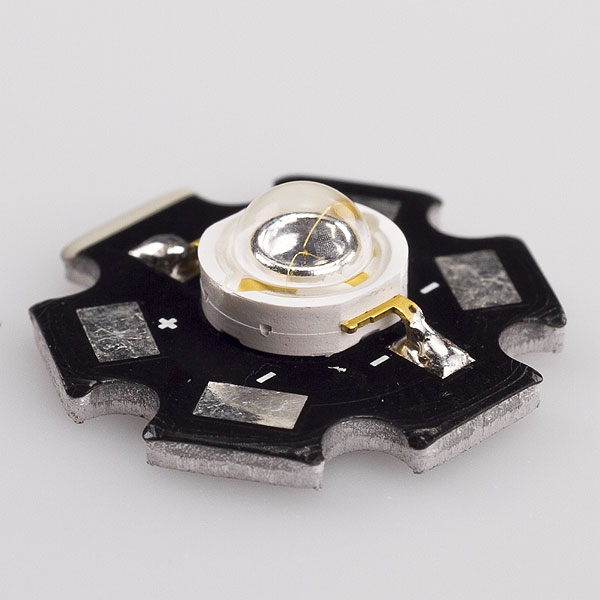

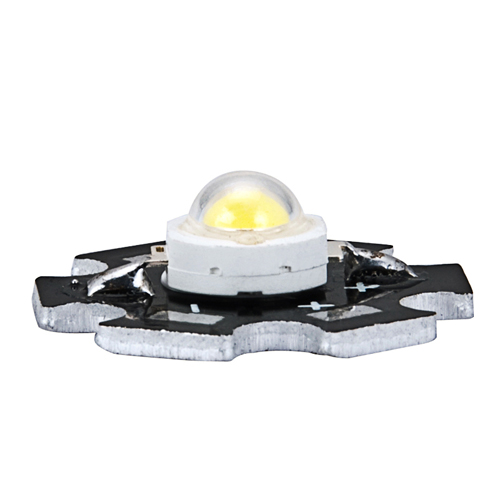

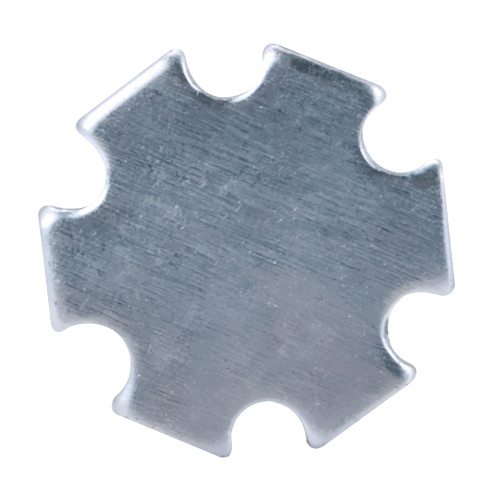

Home High Power LEDs 1W LED HERO-LED 1W High Power LEDs, 20mm Aluminum LED Star, Cool White 6000K, 10-Pack
This product was added to our catalog on Monday 09 June, 2008.
| SPECIFICATIONS | |||||||
| PART NUMBER : | HL-1W-CW | ||||||
| Main Features | |||||||
| COLOR | SIZE | MATERIAL | LENS TYPE | ||||
| Cool White | 20mm Star | InGaN | Clear | ||||
| Absolute Maximum Ratings: (TA=25°C) | |||||||
| PARAMETER | SYMBOL | RATING | UNIT | ||||
| Continuous Forward Current | IF | 350 | mA | ||||
| Peak Forward Current | IFP | 500 | mA | ||||
| Power Dissipation | PD | 1000 | mW | ||||
| Reverse Voltage | VR | 5 | V | ||||
| Operating Temperature | TA | -20 ~ 50 | °C | ||||
| Storage Temperature | TSTG | -20 ~ 100 | °C | ||||
| Lead Soldering Temperature | TSOL | Max.260°C for 5 Seconds Max. | |||||
| Typical Optoelectric Characteristics | |||||||
| PARAMETER | SYMBOL | MAX | TYP | UNIT | |||
| Test (Forward Current) | IF | 500 | 350 | mA | |||
| Forward Voltage | VF | 3.6 | 3.2 | V | |||
| Reverse Current | IR | 50 | / | μA | |||
| View Angle of Half Power | 2σ1/2 | 140 | 120 | Degree | |||
| Wavelength | λD | / | / | nm | |||
| CCT Range | λD | 6500 | 6000 | K | |||
| Luminous Intensity | IV | / | / | mcd | |||
| Luminous Flux | φv | 87.9 | 82 | lm | |||
