TRIAC/Phase-cut Dimmable LED Driver Transformer - Enclosed LED Power Supply - Constant Voltage 12V DC, 2.5A, 30W [PS-12LPS30-WJ]

TRIAC/Phase-cut Dimmable LED Driver Transformer - Enclosed LED Power Supply - Constant Voltage 12V DC, 2.5A, 30W

(0) Write a Review

[ SKU: PS-12LPS30-WJ ]

Processing Time will be calculated when item is selected

Ship to:

Shipping Time: Please choose a shipping method at checkout

$54.95

QTY

Send Inquiry

Qty Discounts New Price

10 - 49	$53.30
50 - 99	$52.20
100 - 499	$49.46
500 - 999	$46.71
1000 +	$43.96
*Qty discounts will be automatically applied

Product Information

Product Details

Description

Input: AC 100-277V (±0.5V), 50/60Hz.
Output: 12 Volt DC, 2.5 Amps, 30 Watts.
Dimensions: 165*92*26mm (L*W*H).
Efficiency: 79% (Typ.) @ full load.
Power Factor: 0.99 @120V AC, 0.98 @277V AC.
Working Temperature: -40～60 degrees centigrade.
Working Humidity: 20～90%RH, non-condensing.
Storage Conditions: Temperature -40～80 degrees centigrade，Humidity 10～95% RH.
Short Circuit: Shut down o/p voltage, re-power on to recover after fault condition is removed.
Over Loading: ≤120% shut down o/p voltage, re-power on to recover.
Over temperature: 90～110 degrees centigrade shut down o/p voltage, automatically recover after cooling.
TRIAC/Phase-cut Dimmable Constant Voltage 12V DC LED Driver.
Full protection enclosed metal housing.
Certificates: UL, cUL, Class 2 and FCC approved.

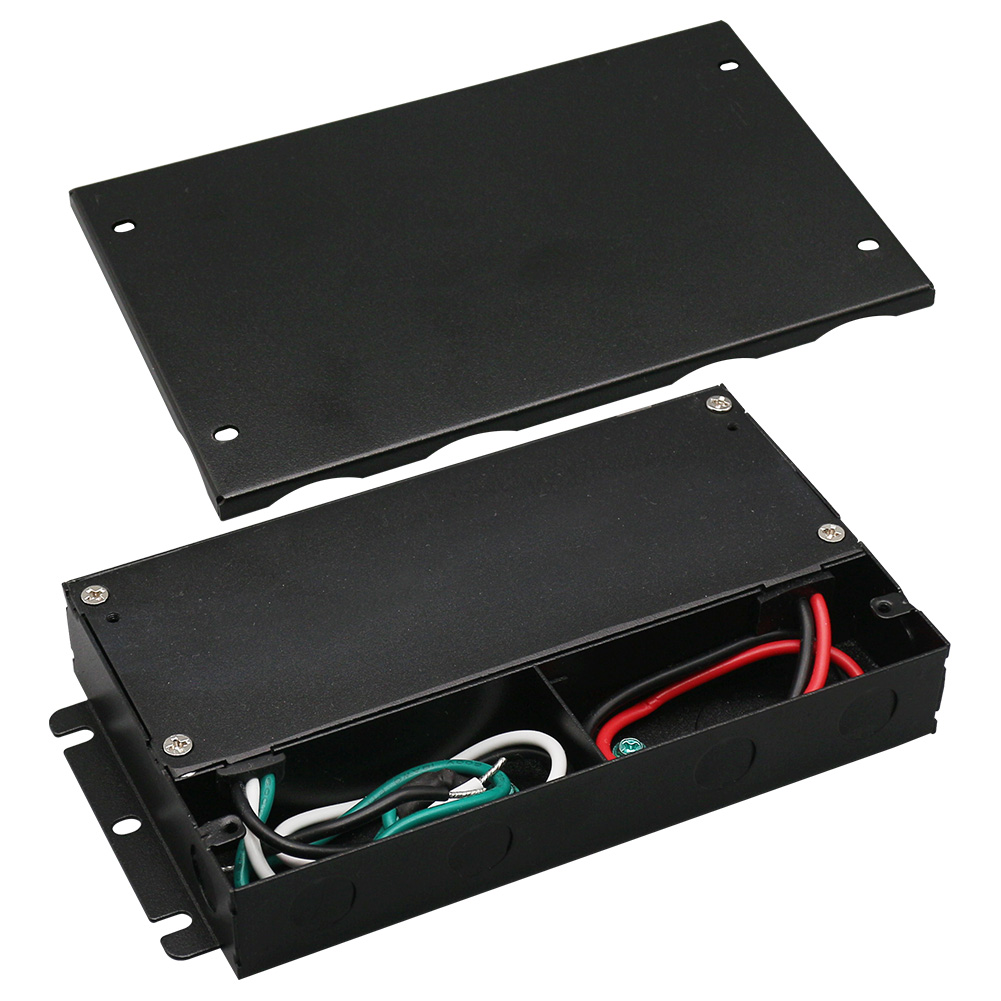

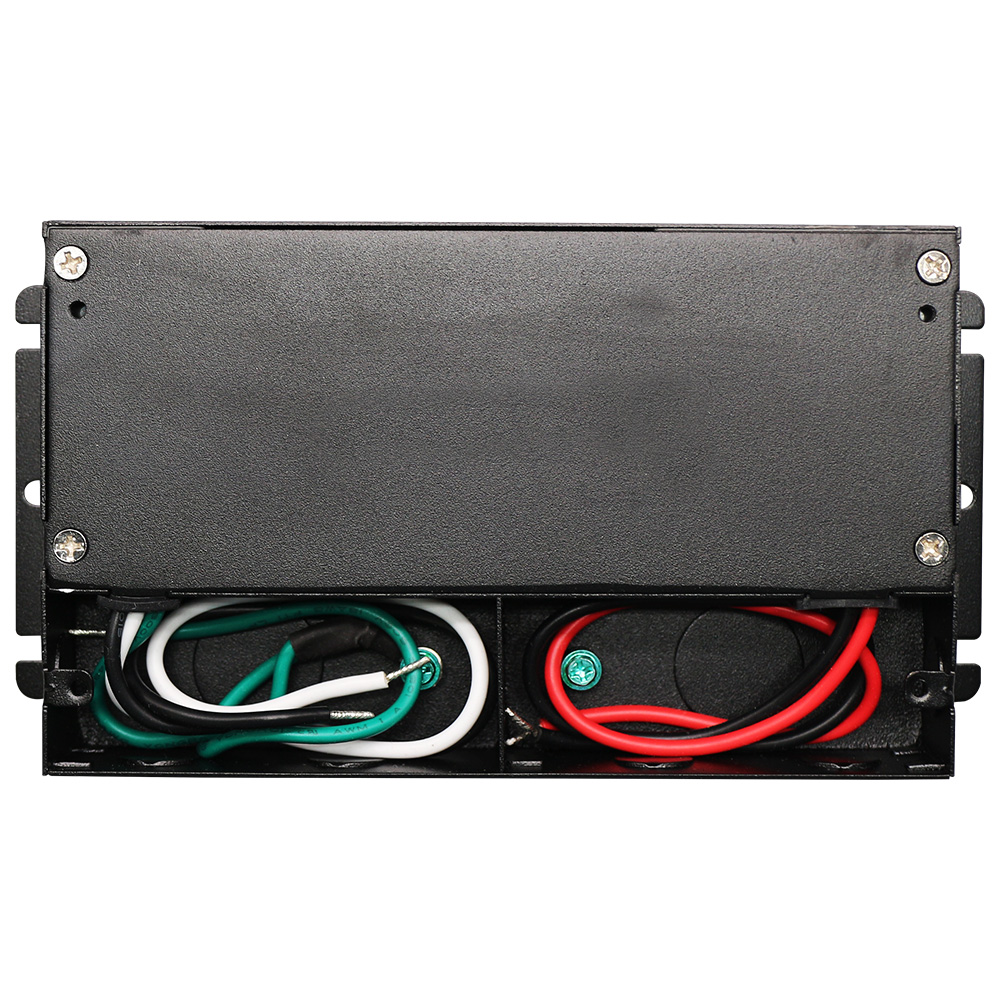

Wiring Instructions: Black wire for AC L, White for AC N, Green for Ground; Red for LED +, Blue for LED - .

Standards and Certificates

UL Listed FCC FCC

This product was added to our catalog on Monday 21 October, 2019.

Specifications

SPECIFICATIONS
PART NUMBER :	PS-12LPS30-WJ
Transformer Type	Constant Voltage
Input Voltage	AC 100-277V
Output Current	2.5 Amps
Output Voltage	12 Volt DC
Output Power	30 Watt
Dimmable	Yes
Dimension	1659226mm (LWH)
Efficiency (Typ.)	79% (Typ.) @ full load
Protection Rating	Suitable for dry/damp locations
Working Temperature	-40°C to +60°C
Material	Full protection aluminum housing
Certificate	UL, cUL, Class 2 and FCC
Power Plug	No Power Plug
Wire Length	20cm (7.87 in.)
Application	Works with conventional dimmers to dim led strip lights, led light bulbs and other low voltage led lights
