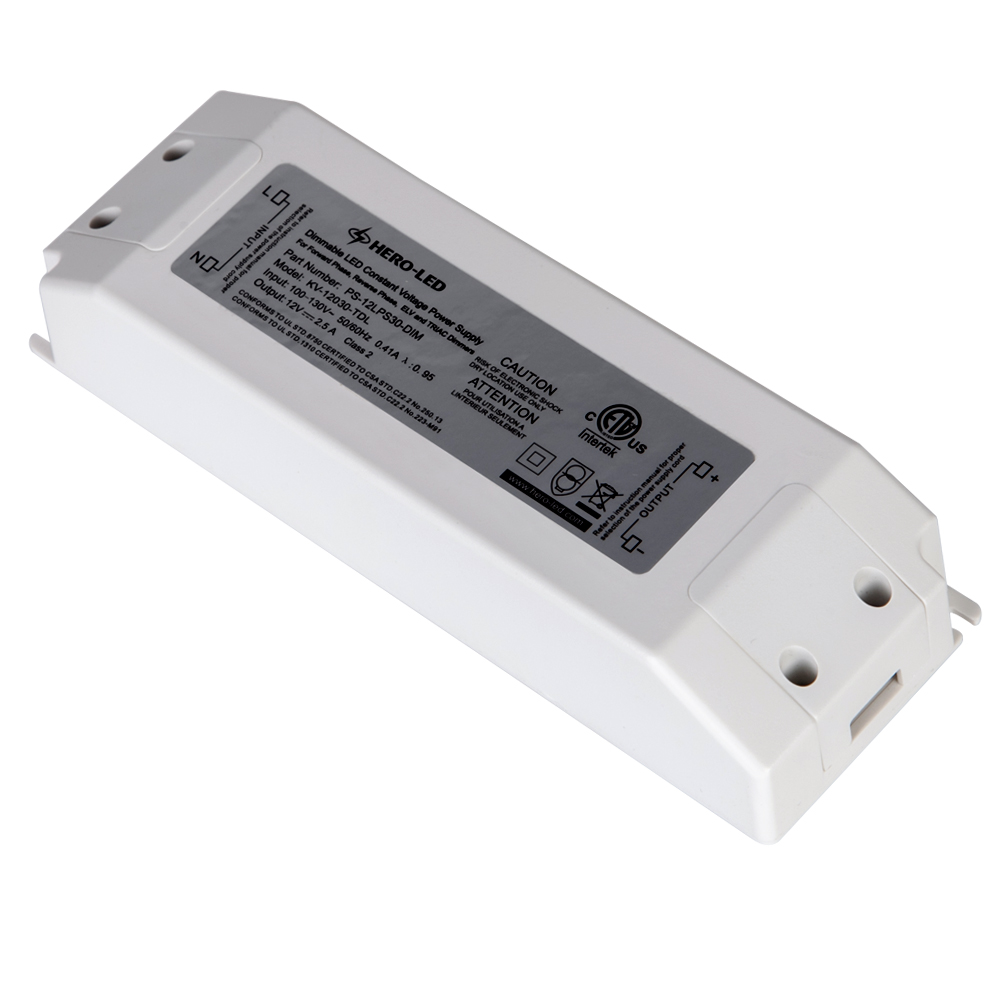

Dimmable LED Constant Voltage Power Supply - Dimmable LED Transformer - 12V DC, 2.5A, 30 Watts [PS-12LPS30-DIM]

Dimmable LED Constant Voltage Power Supply - Dimmable LED Transformer - 12V DC, 2.5A, 30 Watts

(0) Write a Review

[ SKU: PS-12LPS24 ]

Processing Time will be calculated when item is selected

Ship to:

Shipping Time: Please choose a shipping method at checkout

Starting at $39.95

QTY

Send Inquiry

Qty Discounts New Price

10 - 49	$38.75
50 - 99	$37.95
100 - 499	$35.96
500 - 999	$33.96
1000 +	$31.96
*Qty discounts will be automatically applied

Product Information

Product Details

Description

Input Voltage: AC 100~130V, 50/60Hz
12 Volt DC
2.5 Amps (2500mA)
30 Watt (Max.)
Protection Rating IP62
Working Temperature: -40℃~60℃
Efficiency: 84% (Typ.)
Full protection plastic housing.
Size: 180mm x 60mm x 35mm
ETL and FCC Approved

Standards and Certificates

FCC FCC ETL ETL

Documentation

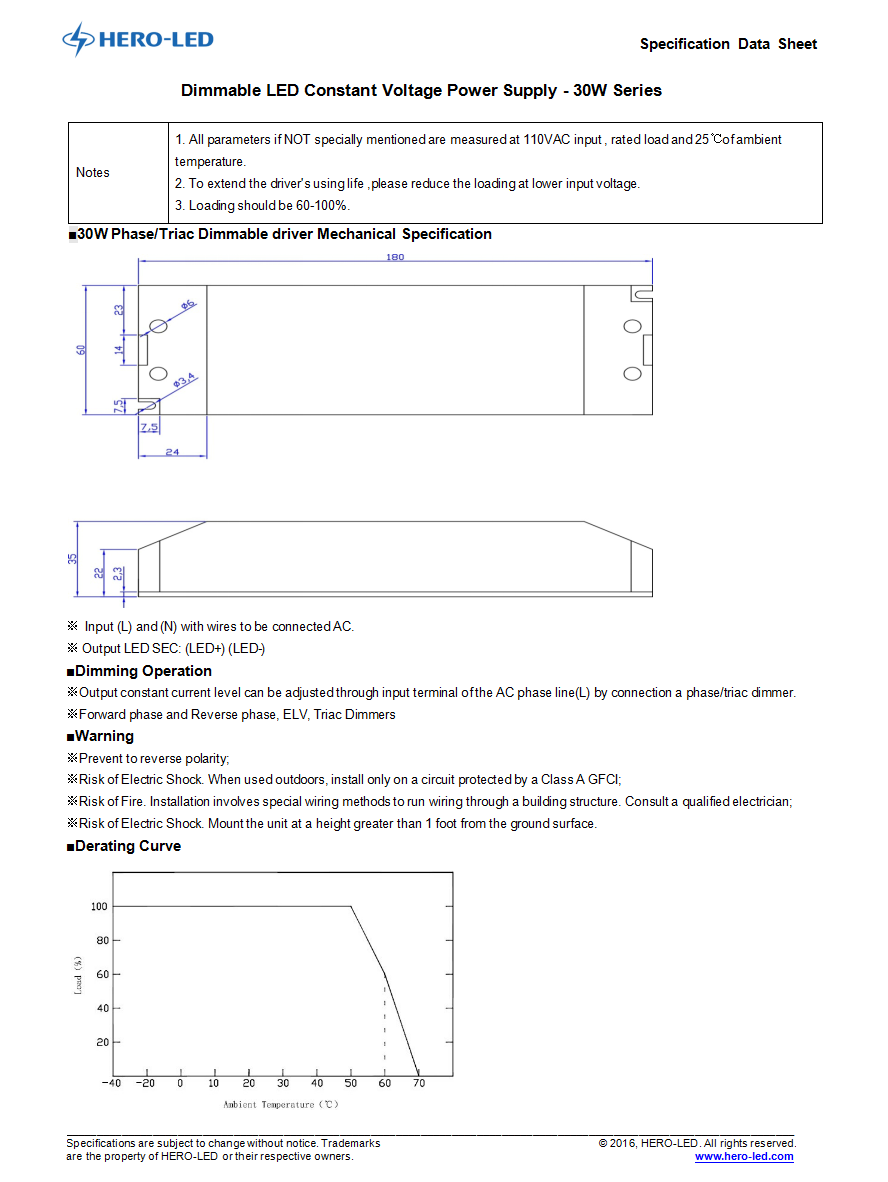

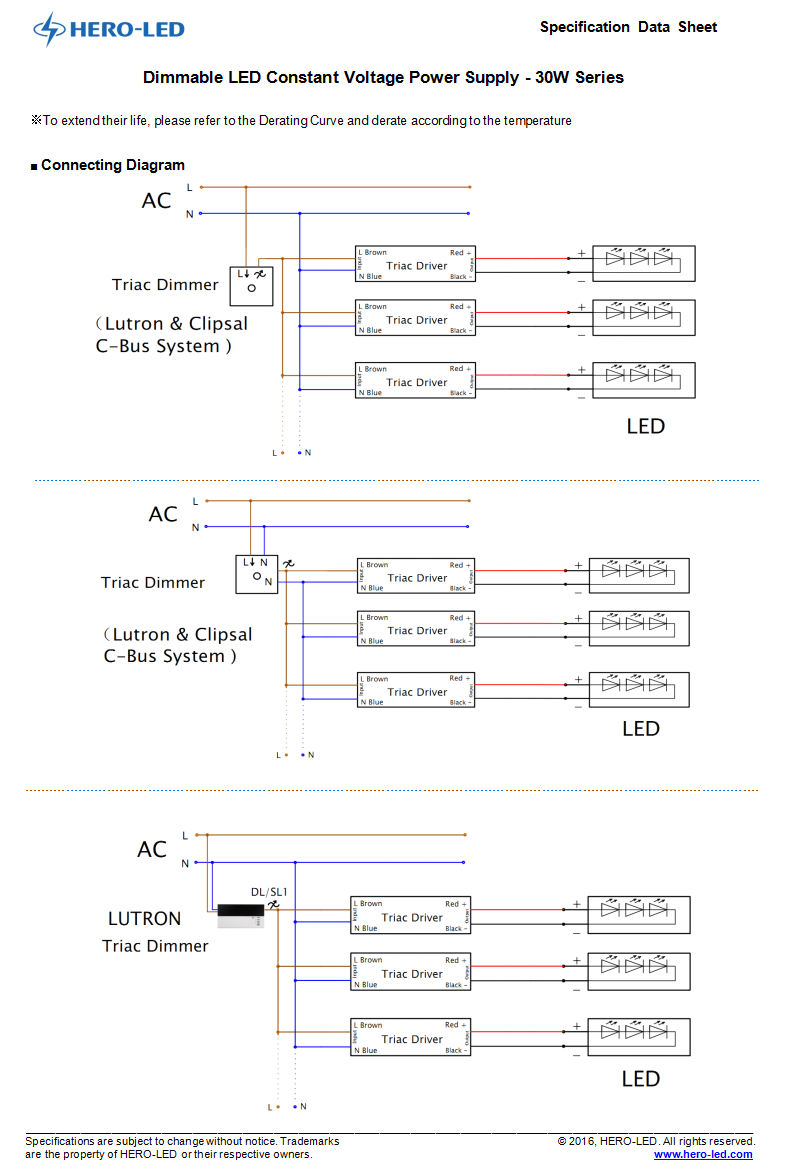

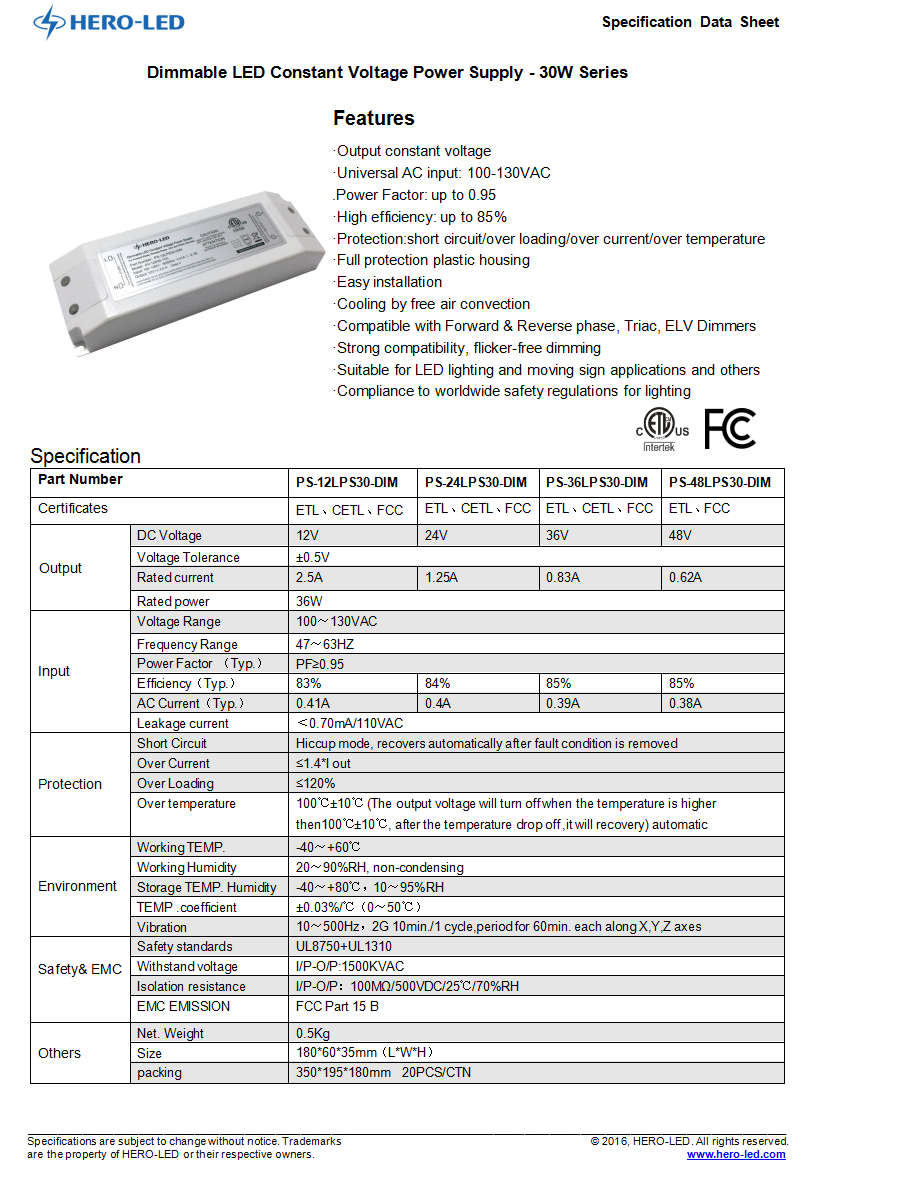

PS-12LPS30-DIM Specification

This product was added to our catalog on Thursday 17 September, 2015.

Specifications

SPECIFICATIONS
PART NUMBER :	PS-12LPS30-DIM
Transformer Type	Constant Voltage
Input Voltage	AC 100-130V
Output Current	2.5 Amps
Output Voltage	12 Volt DC
Output Power	30 Watt
Dimmable	Yes
Dimension	180mm x 60mm x 35mm
Efficiency (Typ.)	84% (Typ.)
Protection Rating	IP62
Working Temperature	-40°C to +60°C
Material	Full protection plastic housing
Certificate	ETL/FCC
Power Plug	/
Wire Length	No wire
Application	Works with conventional dimmers to dim led strip lights, led light bulbs and other low voltage led lights
