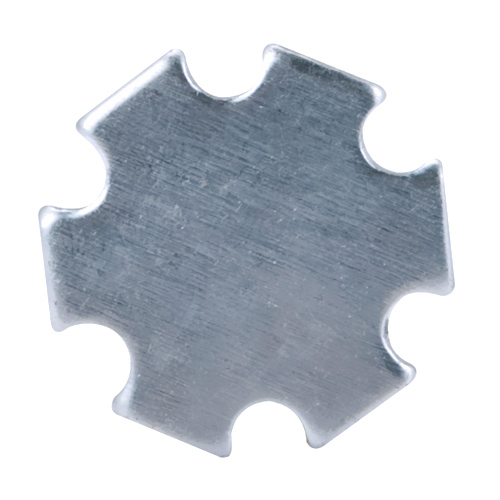

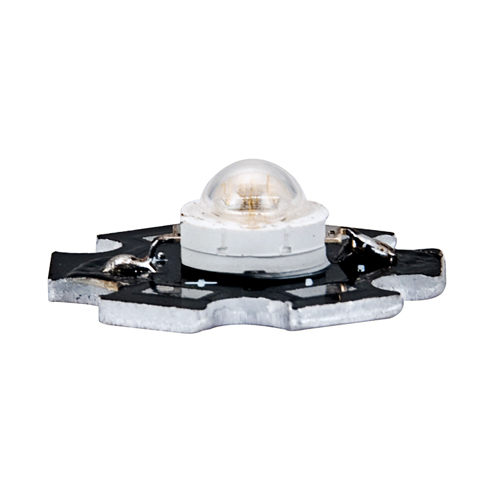

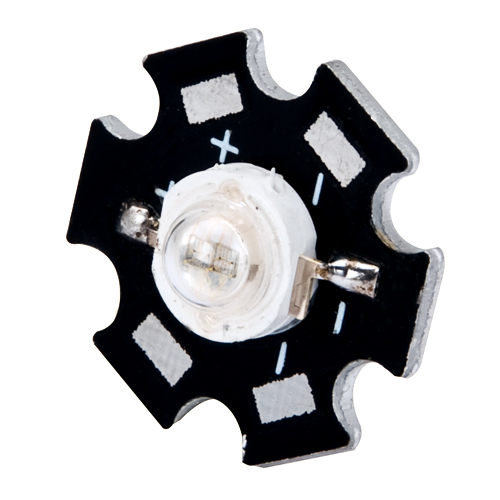

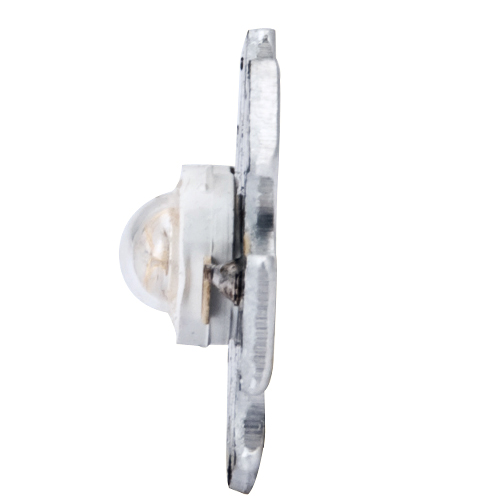

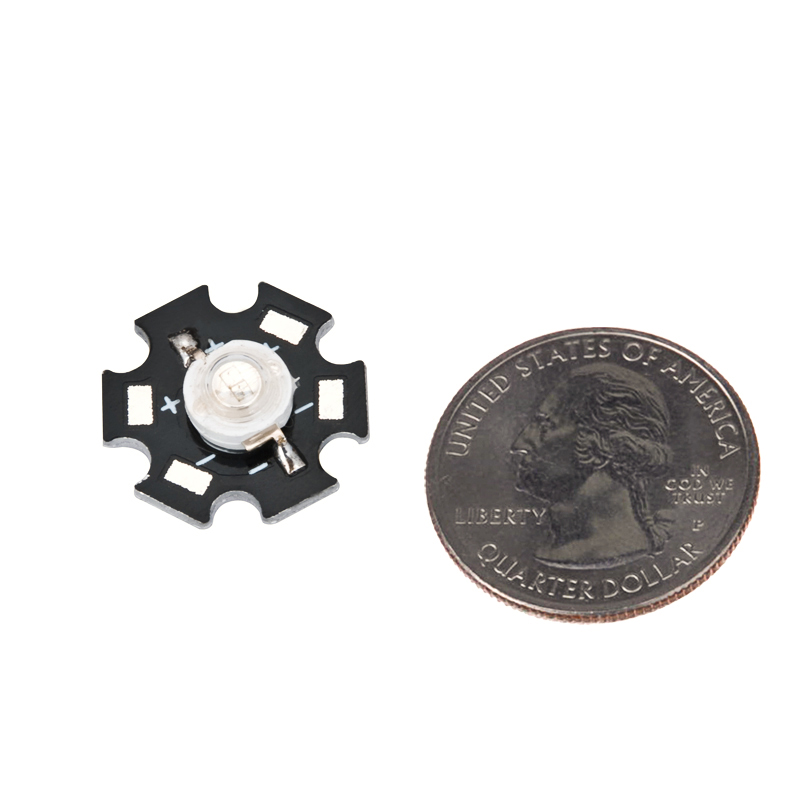

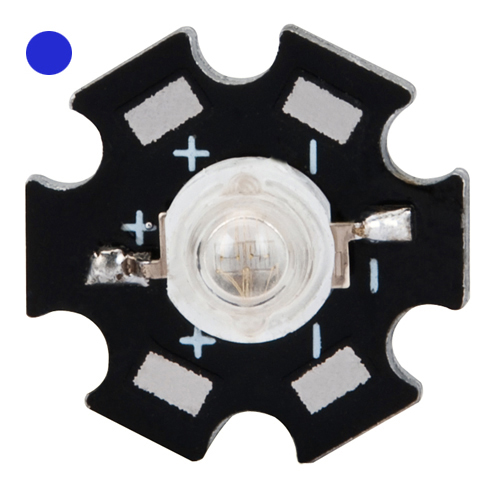

HERO-LED 1W High Power LEDs, 20mm Aluminum LED Star, Royal Blue 445nm, 10-Pack [HL-1W-B445]

HERO-LED 1W High Power LEDs, 20mm Aluminum LED Star, Royal Blue 445nm, 10-Pack

(0) Write a Review

[ SKU: HL-1W-B445 ]

LED Color:

Blue

Processing Time will be calculated when item is selected

Ship to:

Shipping Time: Please choose a shipping method at checkout

$100.00

QTY

Send Inquiry

Qty Discounts New Price

10 - 49	$97.00
50 - 99	$95.00
100 - 499	$90.00
500 - 999	$85.00
1000 +	$80.00
*Qty discounts will be automatically applied

Product Information

Product Details

Description

DC Forward Current: Typ. 350mA ( 0.35A )
DC Forward Voltage: 3.0V Min. ~ 3.6V Max. ( 3.2V Typ. )
Power Consumption: 1.0 Watts
Emitting Color(s): Royal bule rated at 445nm
Luminous Flux up to 25 Lumens
View Angle of Half Power is 120 Degree
Operation Temperature: -20℃ ~ 50℃
Storage Temperature: -20℃ ~ 100℃
Soldering Temperature: 260℃ within 5 Seconds
Additional Heatsink is required when operation temperature is higher than 50℃
Additional aluminum heatsink and fans work together to make leds perform better
Extra Constant Current LED Driver is required to drive the LED
Please install and operate the LED as per specifications and instructions
Damage from improper installation or abuse will invalid warranty
Qualified electricians who are familiar with LEDs are highly recommended
The package includes 10 pcs LEDs.

This product was added to our catalog on Thursday 30 August, 2012.

Specifications

SPECIFICATIONS
PART NUMBER :	HL-1WHPL-ROY445
Main Features
COLOR		SIZE	MATERIAL	LENS TYPE
Royal Blue		20mm Star		Water Clear
Absolute Maximum Ratings: (TA=25°C)
PARAMETER		SYMBOL	RATING	UNIT
Continuous Forward Current		IF	350	mA
Peak Forward Current		IFP	500	mA
Power Dissipation		PD	1,000	mW
Reverse Voltage		VR	5	V
Operating Temperature		TA	-20 ~ 50	°C
Storage Temperature		TSTG	-20 ~ 100	°C
Lead Soldering Temperature		TSOL		Max.260°C for 5 Seconds Max.
Typical Optoelectric Characteristics
PARAMETER		SYMBOL	MAX	TYP	UNIT
Test (Forward Current)		IF	500	350	mA
Forward Voltage		VF	3.6	3.2	V
Reverse Current		IR	50	/	μA
View Angle of Half Power		2σ1/2	140	120	Degree
Wavelength		λD	450	445	nm
CCT Range		λD	/	/	K
Luminous Intensity		IV	/	/	mcd
Luminous Flux		φv	30	25	lm
